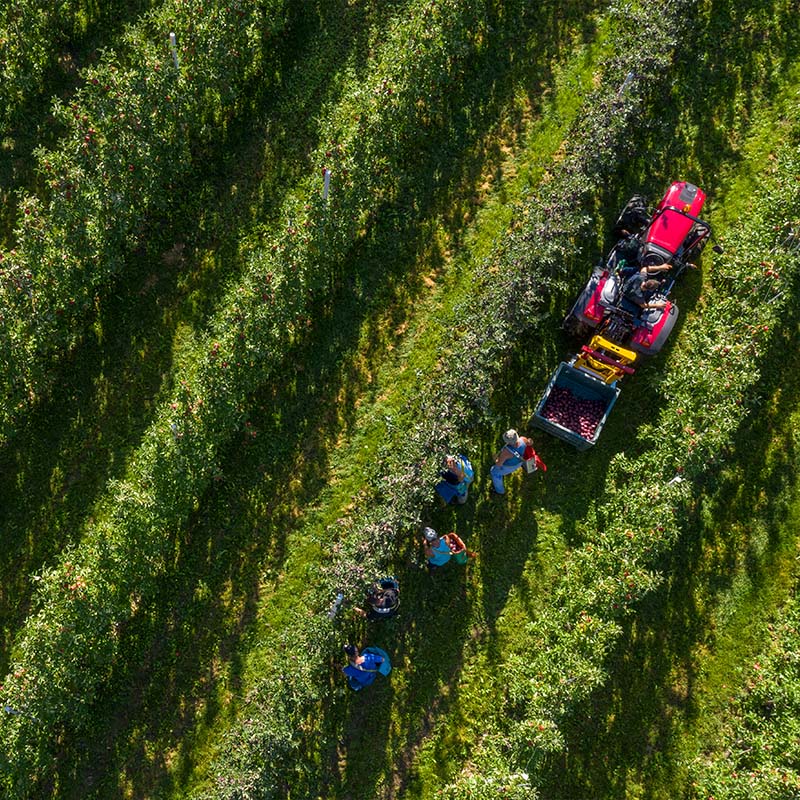

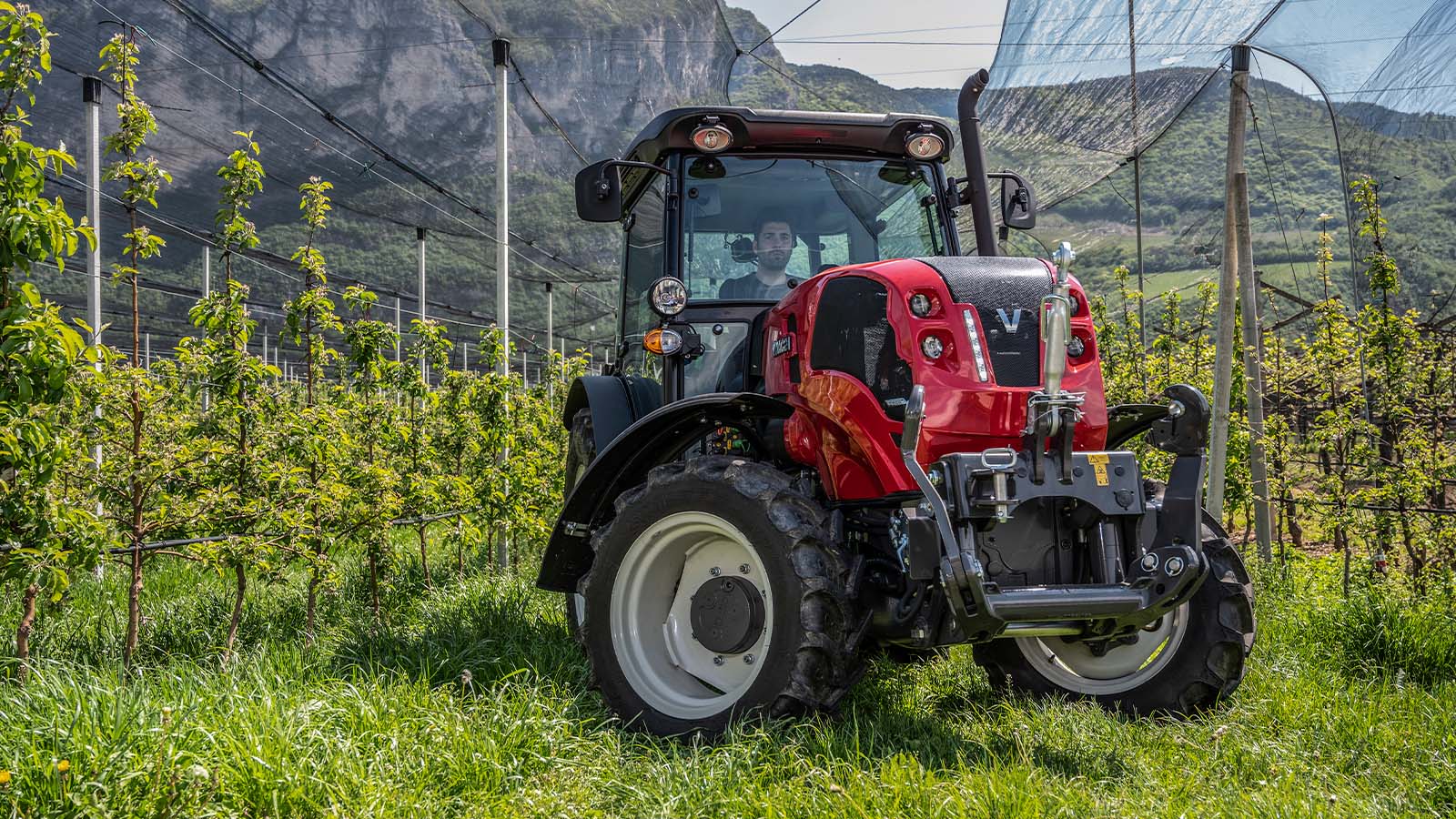

The Valtra F Series is the perfect tractor for specialist jobs such as fruit farms and vineyards. It’s between 1.3 and 1.8 m wide, making it ideal for the narrow passages between your most valuable fruit crops. The specially shaped chassis combined with a front axle enable a 55-degree wheel angle. Tight turns are possible with a 3.6 m radius. The Valtra F Series is a compact machine and its powerful hydraulics allow the use of equally effective implements to make the F Series your working machine for specialist use.

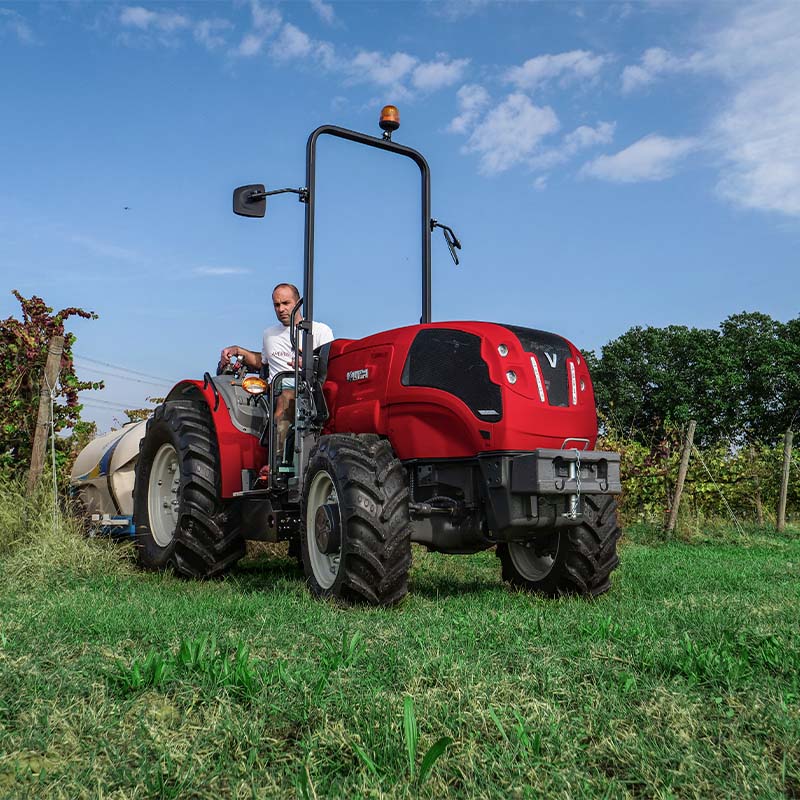

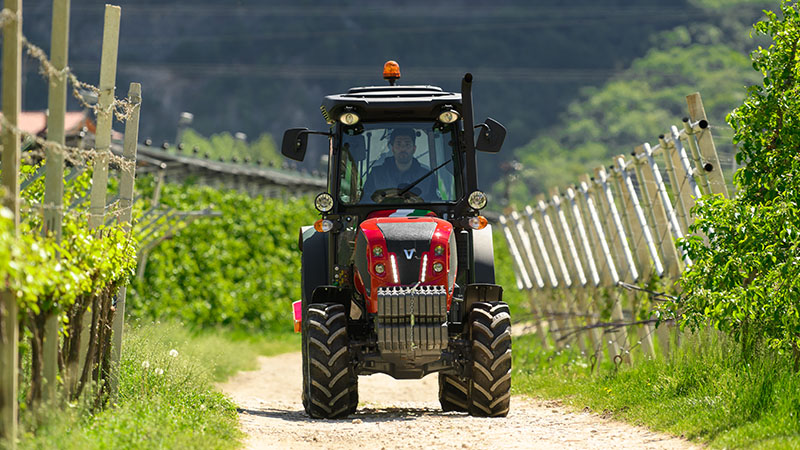

The Valtra F Series comes in three main versions. You can choose a tractor with or without a cab (1.5 - 1.8 m width) or go for the narrow model (1.3 - 1.5 m width) to fit through tighter spaces. Without the cab and with rollover protective structure (ROPS) the machine can be as low as 1.4 m. It is a compact model perfect for the tightest of spaces. To get the perfect fit, a good selection of 24” and 28” rear wheels are available, with corresponding 16” to 20” front wheels.
The F Series is a compact tractor with powerful hydraulics that are ideally suited for equally effective implements, making this tractor the perfect working machine for specialist tasks and demanding situations.
The Valtra F Series can be equipped with two or three hydraulic pumps and up to four implement valves. Flow control and mid-mounted quick couplers are available. The F Series has up to three tons power lift capacity
Specialist work requires varied working speeds and the right transmission. The F Series is available with three transmission options. As well as the well-known and cost-effective mechanical 24 + 24R transmission with a synchromesh shuttle which offers the right speed for every task, there is now a 12 + 12R option. For increased comfort and efficiency, the power shuttle 24 + 12R transmission with power shift gear offers unparalleled ease of use in any task.

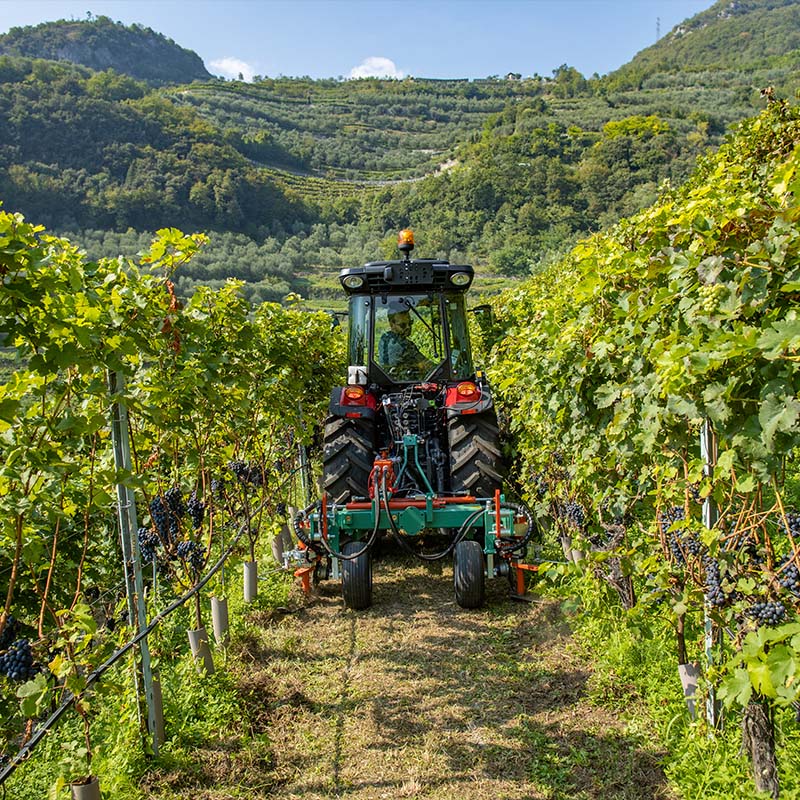

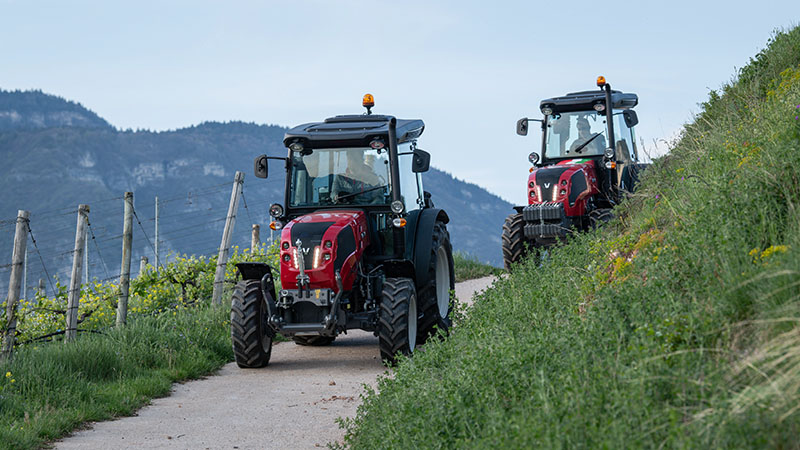

The F Series cabs are perfectly suited for specialist crop operations. The air-conditioned and heated cabs are easy to access and are comfortably ergonomic. The F Series offers great visibility, and controls on the right-hand side. Pneumatic and mechanically suspended seat options are also available. Although compact in size, the cab still offers comfort and operating room for long and efficient workdays.
|Model||Engine||Cylinders/volume||Emission regul. according||Output max||1.3m narrow cab||1.3 standard cab or rops||Transmission options|
|Mechanical shuttle||Mechanical shuttle||Power shuttle|
With 2 PS
|F75||FPT – F28 EU Stage V||4 / 2.8 litre||EU Stage V||75||55||350||Opt.||Opt.||12 + 12R||24+24R||24+12R|
|F95||95||67||370||Opt.||Opt.||12 + 12R||24+24R||24+12R|
|F105||105||75||415||Opt.||Opt.||12 + 12R||24+24R||24+12R|
|Model||STD - ROPS||Narrow (Cab)||STD - Cab|
|Weight without driver and without front ballasts [kg]||2885||3140||3250|
|Maximum vehicle weight [kg]||4400|
|Fuel tank capacity [L]||70||75||93|
|PTO nominal speed at engine speed (2 speed PTO)||540: 1938 1/min ; 540E: 1648 1/min ; 1000: 1962 1/min|
|GSPTO speeds: PTO turns for one rotation of rear wheel||540: 9.077; 540E: 10.670; 1000: 16.605|
|Front axle differential lock||Limited slip|
|Transport length [mm]||4038||4038||4038|
|Tractor width, nominal (real, at narrowest with smallest tyres) [mm]||
|Tyre size corresponding to measures below||300/70R20 (F) / 420/70R28 (R)||280/70R18 (F) /380/70R28 (R)||300/70R20 (F) / 420/70R28 (R)|
|Height cab [mm]||2478||2478|
|Height ROPS up /down [mm]||2653 / 1400|
|Ground clearance [mm]||270||250||270|
|Track width, rear, min /max [mm]||1114 / 1514||955 / 1359||1114 / 1514|
|Tractor width mudguard to mudguard, external (rear, no wideners) [mm]||1450||1080||1450|
|Axle width, FRONT, flange to flange [mm]||1326||990||1326|
|Axle width, REAR, flange to flange [mm]||1234||972||1234|

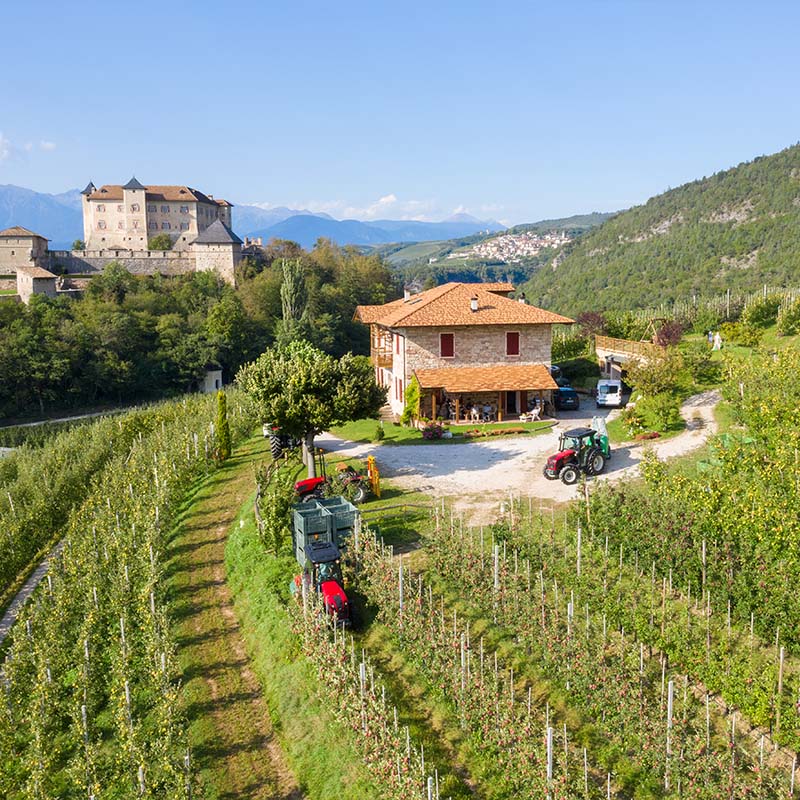

|Standard open with ROPS||Narrow cab||Standard cab|

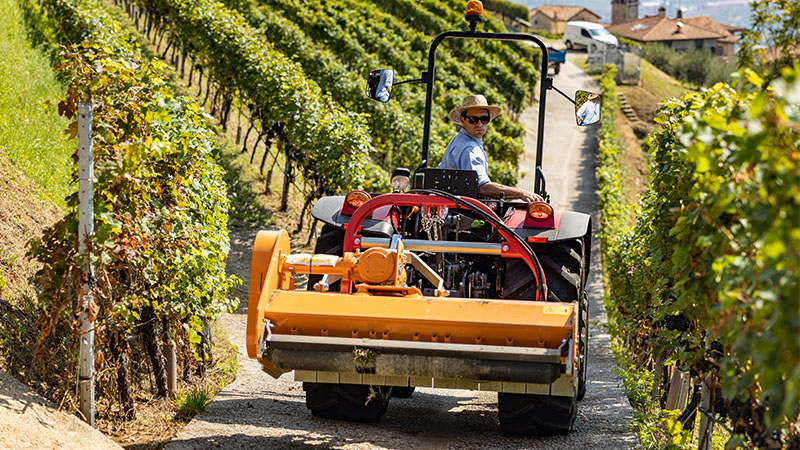

|Open operating station (ROPS)||Narrow cab model||Standard cab model|
|Nominal width 1.5 m||Nominal width 1.3 m||Nominal width 1.5 m|

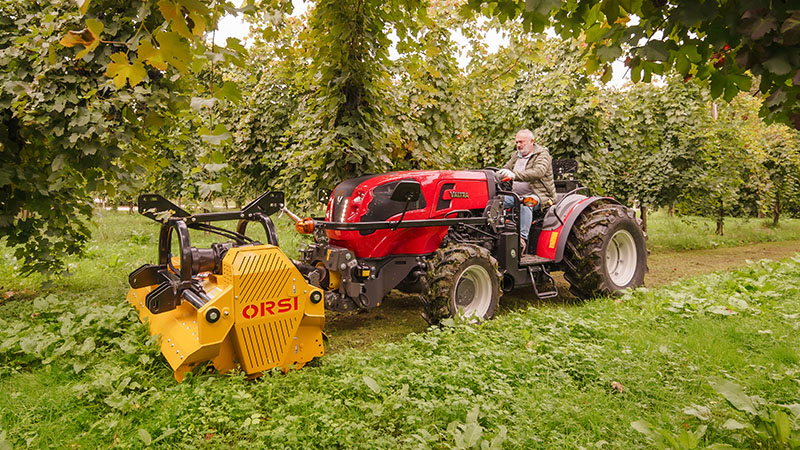

|Low and compact for fruit farms||Right size for vineyards||Right size for fruit farms|
|Lowest point 1.4 m (ROPS down)||Cab model only|
